Architecture

Dual-simulator design

SIMPLE strictly decouples physics from rendering. MuJoCo handles all rigid-body dynamics, contact resolution and robot control; the resulting states are synchronized to Isaac Sim, which performs photorealistic ray-traced rendering. The policy consumes Isaac Sim images and returns actions to MuJoCo.

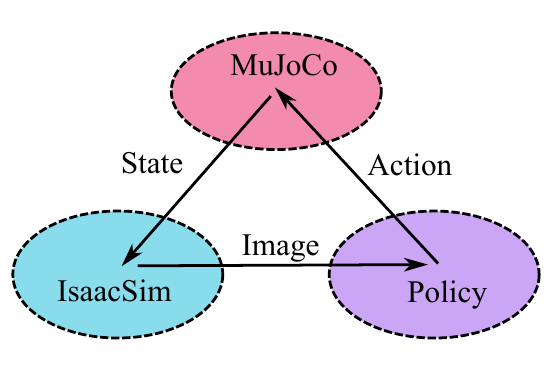

MuJoCo simulates physics, Isaac Sim renders images for the policy

This split buys MuJoCo’s contact fidelity and locomotion stability together with Isaac Sim’s visual diversity. The whole loop is wrapped in a standard Gym interface, and high-level policies emit upper-body kinematic targets plus base navigation commands that a higher-rate lower-body tracking controller executes.

Class diagram

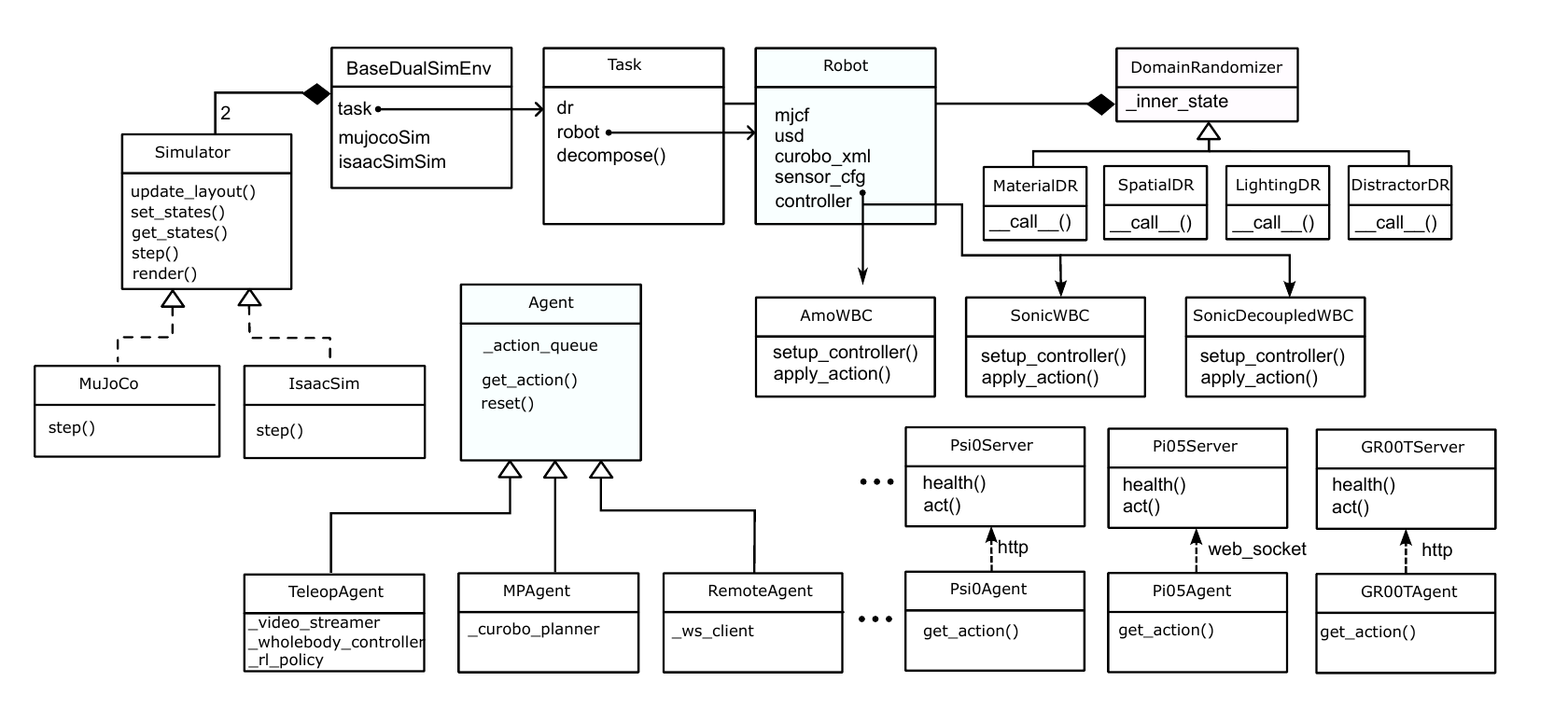

Class diagram of the SIMPLE framework

  • BaseDualSim (envs/base_dual_env.py) — the gymnasium.Env; owns two Simulator instances and the active Task. Isaac Sim is created lazily, only when "isaac" is in sim_mode. LocoManipulationEnv, SonicLocoManipEnv and TabletopGraspEnv subclass it.

  • Simulator (core/simulator.py) — update_layout(), set_states(), get_states(), step(), render(). Implemented by MujocoSimulator (physics) and IsaacSimSimulator (rendering).

  • Task — composes a DRManager and a Robot, and drives scene randomization at each reset. See Task.

  • Robot — asset paths and kinematics config only. See Robot.

  • DRManager — registry of MaterialDR, SpatialDR, LightingDR, DistractorDR and friends. See Domain Randomization.

  • Agents — teleoperation, motion planning and remote inference share one get_action() interface over a buffered action queue.

  • Whole-body controllers — AmoWBC, SonicWBC and SonicDecoupledWBC share setup_controller() / apply_action() and turn high-level commands into low-level joint targets.

  • Policy servers — Psi0Server, Pi05Server, GR00TServer run as separate processes behind health() / act(), reached over HTTP or WebSocket, so inference can sit on another GPU or machine.

One env.step()

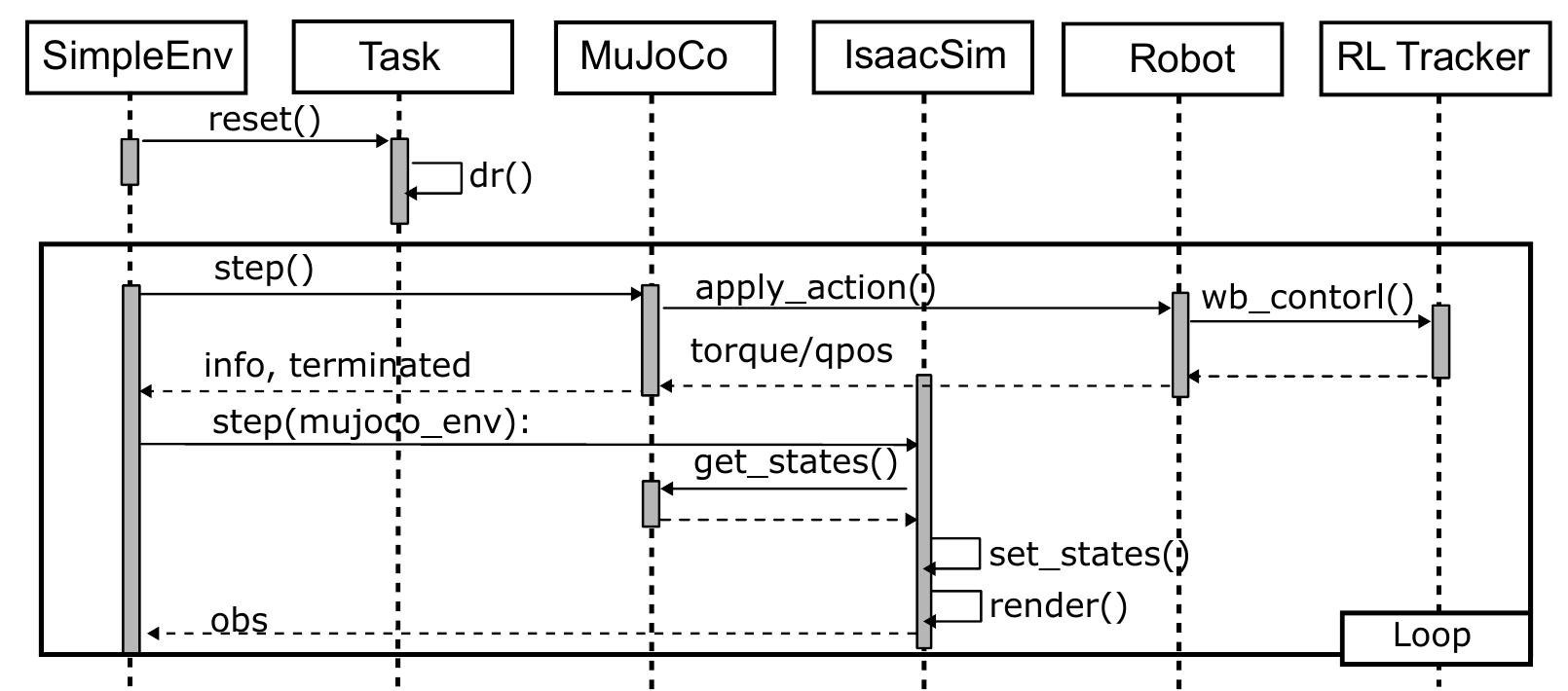

Sequence diagram of a single env.step() call

Task.reset() applies domain randomization once per episode. Then each env.step(action):

  1. MuJoCo applies the action; the robot routes it through the whole-body controller and RL tracker, which return torque / qpos targets.

  2. MuJoCo integrates physics at 500 Hz and reports info and termination.

  3. Isaac Sim reads the states (get_states() → set_states()) and renders at the task’s render_hz (50 Hz for whole-body pipelines).

  4. The observation is returned to the agent.

MuJoCo sub-steps ahead of the slower rendering pass, so every inference step receives a physically consistent, photorealistic observation.
